How / Why / What / Options
What it is: A solid limestone wall panel that has been precision-carved using 5-axis CNC technology to create deep-relief textures like linear grooves or water ripples.
Why it’s trending: Designers are moving away from flat surfaces. 3D stone interacts with light to create moving shadows, adding depth and “biophilic” elements to modern spaces.
How it works: The panels are installed mechanically or adhered to the wall. The texture runs continuously from one panel to the next, creating a seamless monolithic look.
Options: Available in White, Beige, or Grey Limestone. Custom patterns can be programmed from any digital file.

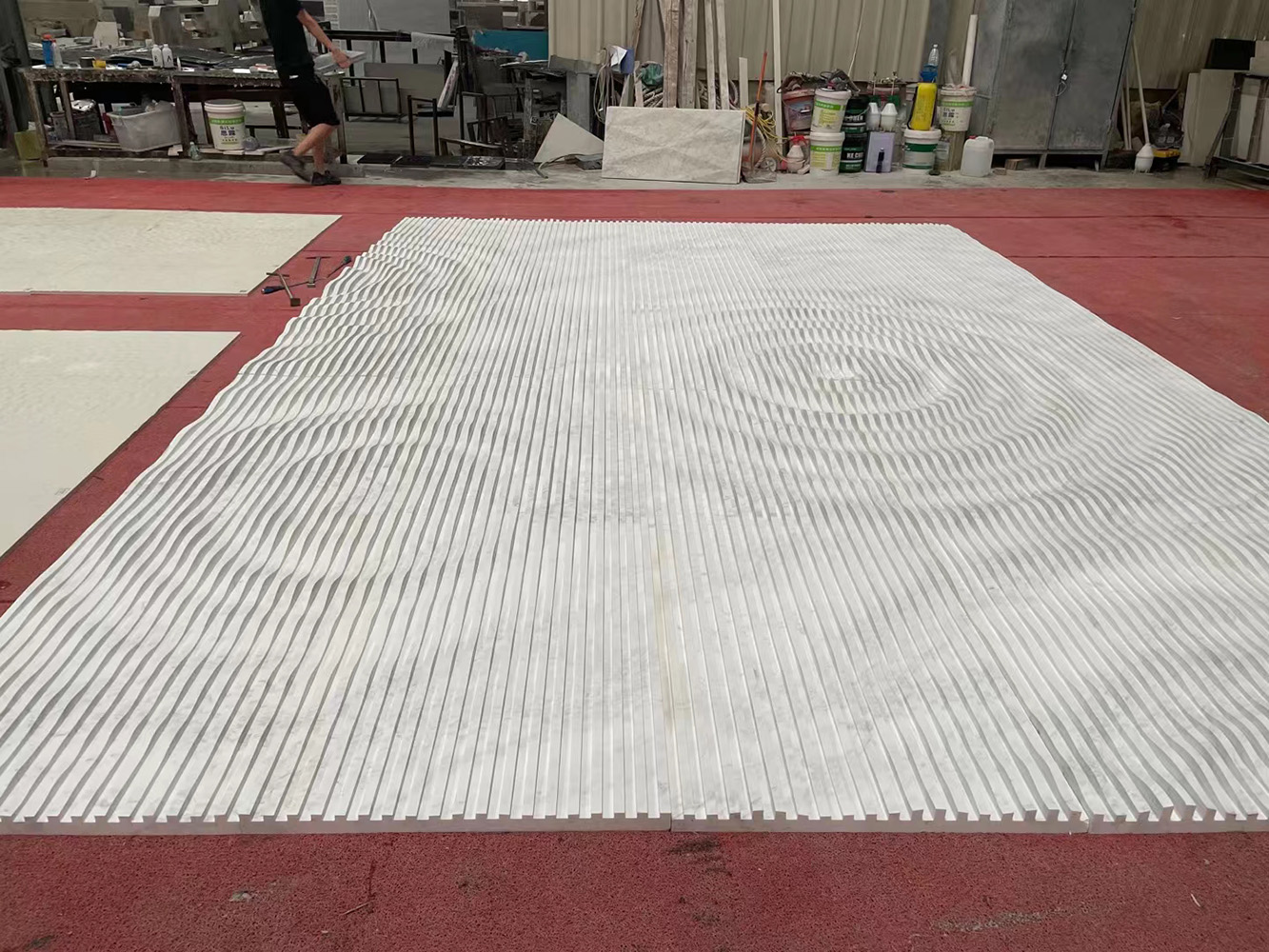

3D CNC Carved Limestone Wall Panel (Water Ripple Texture)
Bring your walls to life with our 3D Carved Limestone Wall Panels. This specific design features a mesmerizing “Water Ripple” effect, created by combining linear grooves with concentric circles that mimic raindrops falling on water.
Fabricated at the CaronStone Factory in China using state-of-the-art CNC technology, these panels transform static stone into fluid art, perfect for high-end lobbies, feature walls, and reception areas.
Material: Limestone
Limestone is the ideal medium for 3D carving due to its uniform texture and ability to hold fine details without chipping. Our limestone selection is dense, consistent in color, and soft to the touch, providing a warm, matte aesthetic that complements the sharp CNC lines.
Specifications
| Product Name | 3D CNC Stone Wall Panel |
| Material | Natural Limestone (White, Beige, Grey) |
| Texture Style | Water Ripple / Raindrop / Linear Groove |
| Panel Size | 600x1200mm, 1200x2400mm (Customizable) |
| Thickness | 20mm – 30mm (Depending on relief depth) |
| Processing | 3D CNC Carving + Hand Honing |
| Origin | Made in China (CaronStone Factory) |
Why Choose CNC Carved Stone?
- Visual Impact: The 3D relief interacts with lighting to create dynamic shadows that change throughout the day.
- Precision: CNC milling ensures that the pattern flows seamlessly from one panel to the next (continuous pattern).
- Acoustics: The textured surface of limestone helps diffuse sound, improving acoustics in large spaces like lobbies.
- Customization: We can carve any digital design into stone, offering limitless creative freedom.
Packaging & Shipping
The carved ridges are delicate before installation. We take extra care in packaging:
- Panels are packed face-to-face with thick foam sheets.
- Sturdy, fumigated wooden crates.
- Vertical strapping to prevent friction during transport.
We offer global shipping for large architectural projects.
FAQ: 3D Stone Panels
- Q1: How deep is the carving?
- A: Typically, the relief depth ranges from 5mm to 15mm, but we can go deeper for a more dramatic effect.
- Q2: Can I use this in a shower?
- A: Yes, but limestone must be sealed properly. The textured surface may require more maintenance to clean soap scum.
- Q3: Do the patterns match?
- A: Yes, we number each panel to ensure the “ripple” flows continuously across the entire wall installation.
- Q4: What is the maximum panel size?
- A: We can carve slabs up to 2800mm x 1500mm.
- Q5: How do I install it?
- A: For large panels, we recommend a mechanical dry-hang system. Smaller panels can be adhered with high-strength stone epoxy.
- Q6: Is it expensive?
- A: CNC carving is a premium process, but buying factory-direct from China offers significant savings over European fabricators.
- Q7: Can you use other stones?
- A: Yes, we can carve marble, sandstone, and even granite, though limestone and marble show the best detail.
- Q8: What is the lead time?
- A: CNC machining takes time. Allow 4-5 weeks for production depending on quantity.
- Q9: Do you provide design services?
- A: Yes, our team can convert your image or concept into a 3D CAD file for carving.
- Q10: Where is it made?
- A: Manufactured in China at the CaronStone factory.
- Q11: Is it fragile?
- A: The ridges are solid stone, but care must be taken during installation to avoid chipping the high points.
- Q12: Do you ship samples?
- A: Yes, we can provide a small 30x30cm carved sample for approval.
Create a Feature Wall
Contact our sales team to discuss your custom 3D Stone Wall Panel project.
